Project phasing

US 90 Expansion

US 90 Expansion Map. Simple map showing the project limits for TxDOT San Antonio District's US 90 Expansion project in Bexar County. Phase I is shown between I-410 and Loop 1604, and Phase II is shown between Loop 1604 to west of SH 211. Phase I also includes improvements to Loop 1604 to the north and south US 90, and a roundabout at Ray Ellison Boulevard. Phase II is west of Phase I, and its limits include Loop 1604 to west of SH 211. Key items include: Phase I is represented by three orange lines and Phase II is represented by a dotted purple line.

The US 90 Expansion project will be constructed in phases:

Phase I: I-410 to Loop 1604

Anticipated construction timeline: late 2025 through 2030

Length: 3.3 miles

Total project cost: $146 million

Improvements:

  • Reconstructing and widening US 90 from two to three 12-foot-wide mainlanes from I-410 to Loop 1604 with continuous two-to-three lane frontage roads in each direction.
  • Constructing a two-lane flyover ramp connecting westbound US 90 to northbound Loop 1604.
  • Constructing a roundabout at Ray Ellison Boulevard to improve safety and traffic flow.
  • Building auxiliary lanes in certain locations along the frontage roads to optimize traffic flow at key intersections.

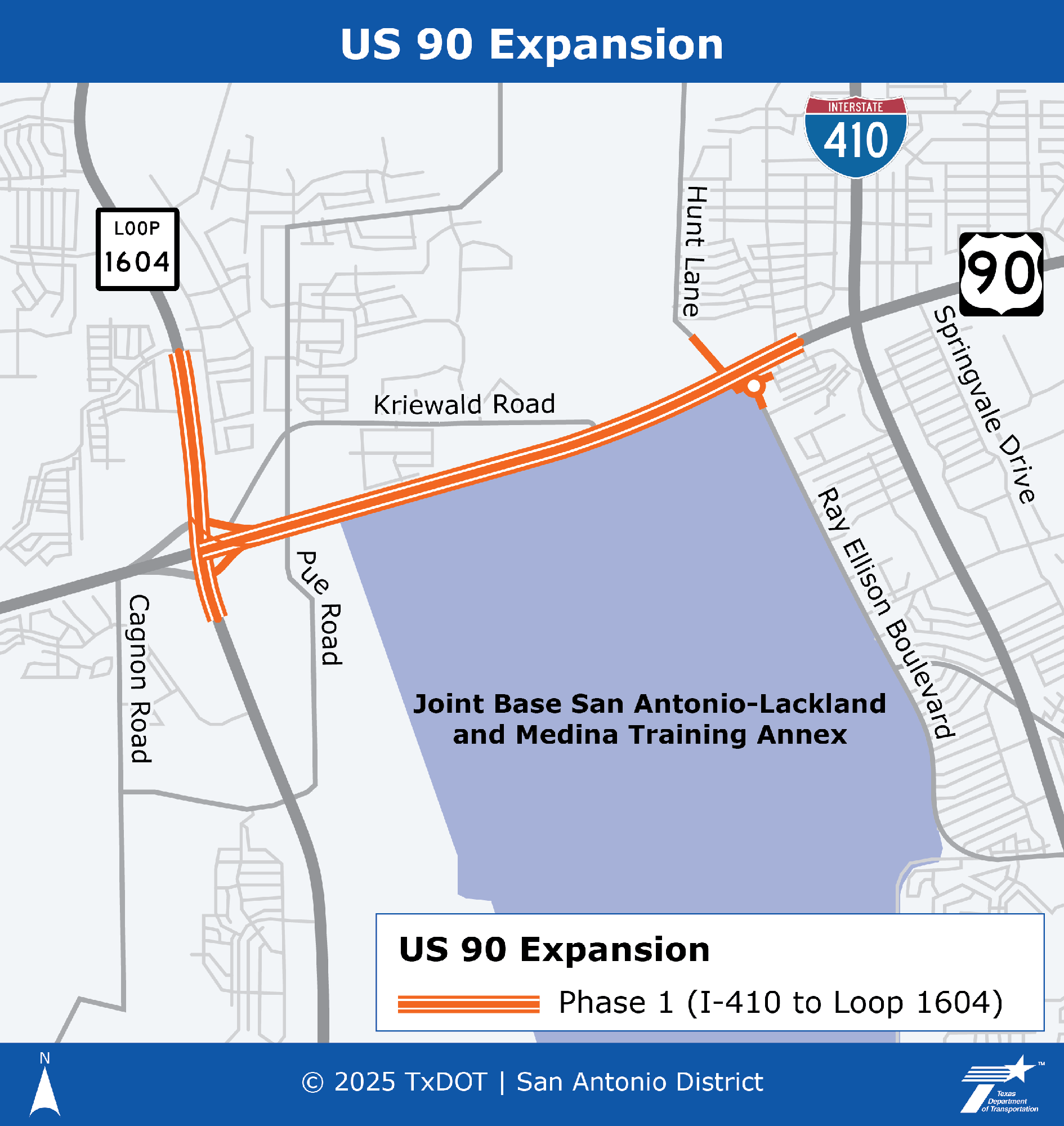

US 90 Expansion Map: Phase I. Simple map showing the project limits for TxDOT San Antonio District's US 90 Expansion project, Phase I in Bexar County. Phase I is shown between I-410 and Loop 1604. Phase I also includes portions of Loop 1604 to the north and south of US 90, a westbound to northbound flyover ramp at Loop 1604, and a roundabout at Ray Ellison Boulevard. Key items include: Phase I is represented by three orange lines.

Phase II: Loop 1604 to SH 211

Anticipated construction timeline: 2028 – 2032

Length: 4.3 miles

Total project cost: $339 million (only partial funding secured)

Improvements:

  • Reconstructing and widening US 90 from two to three 12-foot-wide mainlanes in each direction from Loop 1604 to SH 211.
  • Adding two-to-three continuous frontage road lanes in each direction.
  • Adding auxiliary lanes in some locations.
  • Adding a westbound-to-eastbound turnaround at the US 90/SH 211 intersection.
  • Adding eastbound-to-westbound turnaround bridges along US 90 at Loop 1604 and Montgomery Road.
  • Constructing additional improvements at the US 90/Loop 1604 interchange.

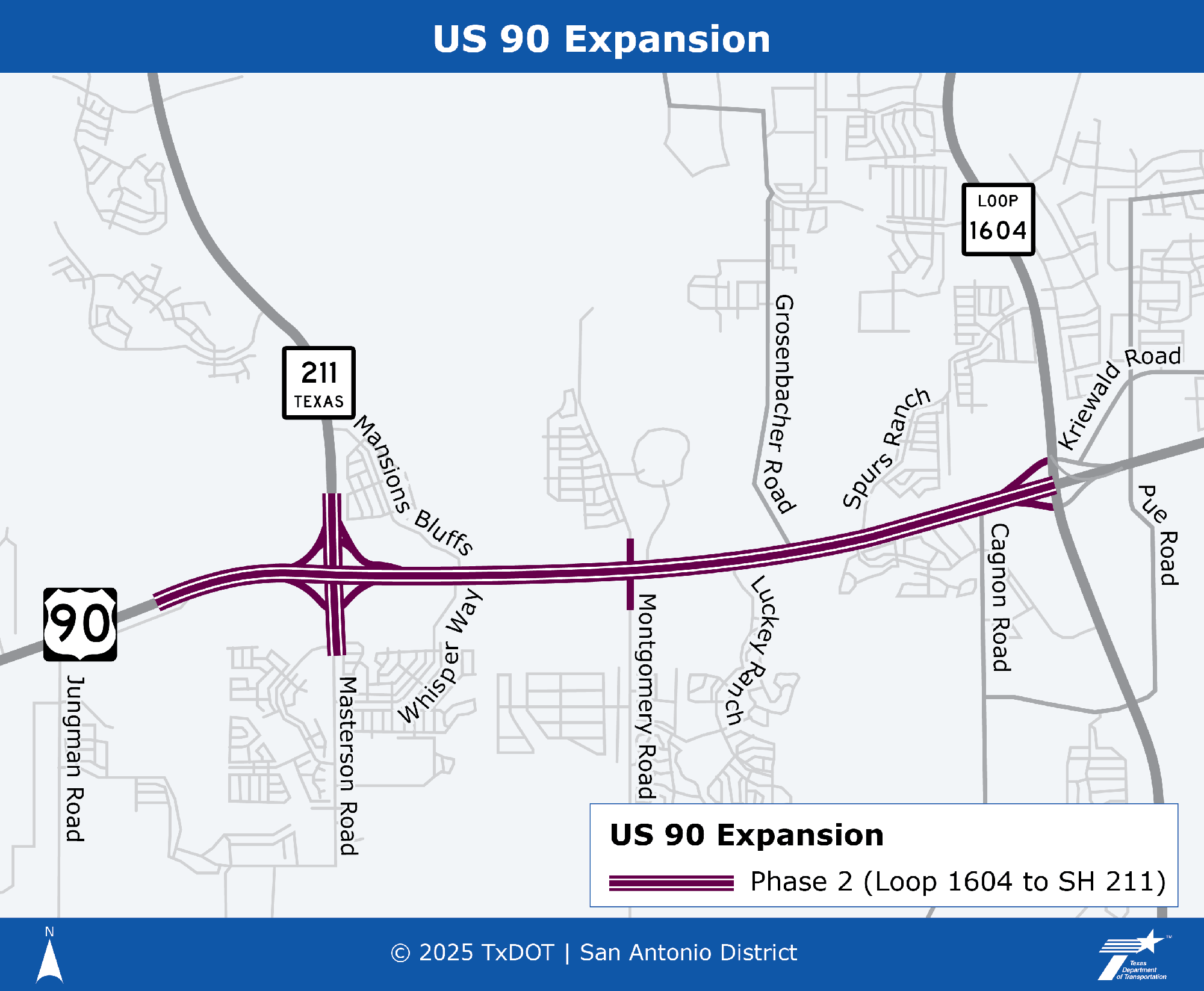

US 90 Expansion Map: Phase II. Simple map showing the project limits for TxDOT San Antonio District's US 90 Expansion project Phase II in Bexar County. Phase II is shown between Loop 1604 and west of SH 211, includes improvements to the SH 211/US 90 interchange. Key items include: Phase II is represented by three purple lines.

Adjacent projects

The following projects are under construction adjacent to the US 90 corridor:
